Key Features
- Max. 36A DC input per MPPT
- 2 MPPT, 4 Strings
- 100% Unbalanced Output
- AI-Driven Energy Management
AC Attributes
| Max power: | 16500W |
| Max current: | 24A |
| Number of phases: | 3 |
DC Attributes
| Max power: | 30Kw |
| V range of MPPT: | 160 - 950V |
| Max voltage: | 950V |
| Start up voltage: | 200V |
System
| Max efficiency: | 98% |
| IP rating: | IP65 |
| Weight: | 47KG |
| Dimensions: | 696x526x240mm |

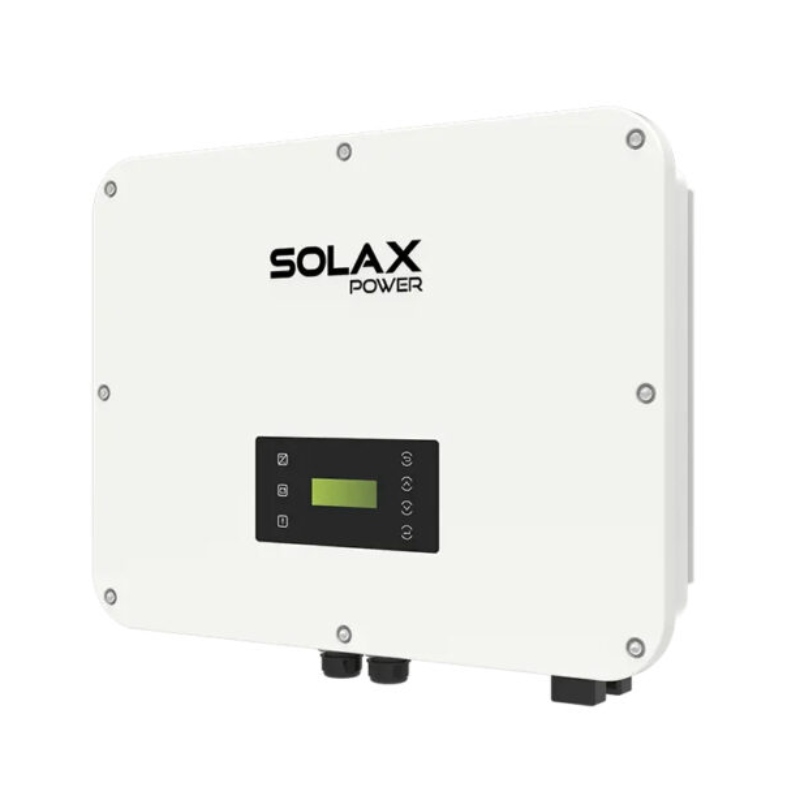

SolaX X3 Ultra 15kW
£2688.00 + VAT
The X3-ULTRA is a versatile 3ph hybrid inverter that includes inversion, solar charging, and battery charging. The X3 ULTRA series can be used with different capacities of SolaX battery.
The X3 Ultra can also store surplus energy in batteries for later use. It is important to understand that this is a hybrid solar PV inverter and battery storage controller. This means it needs to be sized just like a regular inverter would be and, if it is being retrofitted, will replace the existing inverter.
For G100 Applications, please contact SolaX to perform a software update remotely when the product is installed. Additionally, the SolaX CHINT three phase CT energy meter is required.
5 years manufacturers warranty
